ES9W3N Right Hand Top Winder Staircase - Standard Design Offer

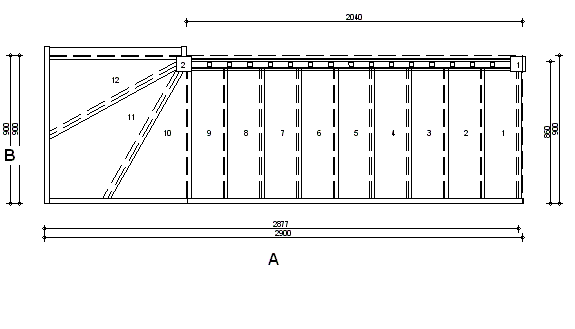

ES9W3N Layout Plan

Right handed top winder staircase fix size offer screw design

A = 2900mm B = 900mm

Dimensions shown are the floor plan dimensions in mm.

The Floor Height this staircase is built to is a standard 2600mm floor height.

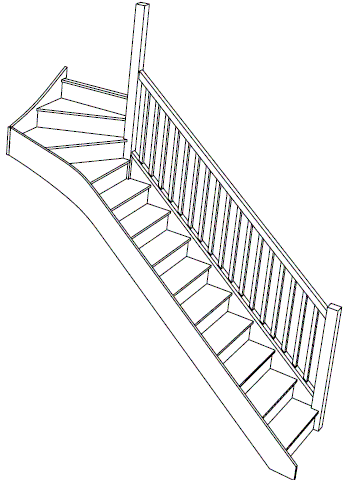

3D View of the Staircase

3d view showing our standard top winder staircase fix size screw design

Material Specification on these standard staircases is as follows.

String Material - 32mm Engineered Pine
Tread Material - 22mm MDF
Riser Material - 12mm MDF
Newel Post Material - 90mm Pine
Handrail Material - Pine
Baserai Materiall - Pine
Baluster Material - Pine

We offer the Following Balustrading Options

Option 1 Option 2 Option 3 Option 4
No Balustrade just a stub newel post to the winder corner for construction purposes. Pine Handrail components, Newel Post sections 90mm Square , Balusters 32mm square section. No Caps Provided. Pine Handrail components, Newel Posts 90mm stop chamfered design, Balusters 32mm stop chamfered design. No Newel caps provided. Pine Handrail components, Newel Post 90mm Turned design with Ball newel caps, Spindles 32mm Georgian Turned design.

Handrail option images for fix size winder staircase offer

This selection of standard sizes winder staircases are available to order direct from us on 01952 608853.

With these being offered at standard fixed sizes we can offer these at exceptionally low prices phone us for the best price on the day and I a m sure you won’t be disappointed.

New now available to order online - Standard Top winder staircase offer

Custom sizes available call us on 01952 608853
