ESW39N Left Hand Bottom Winder Staircase - Standard Design Offer

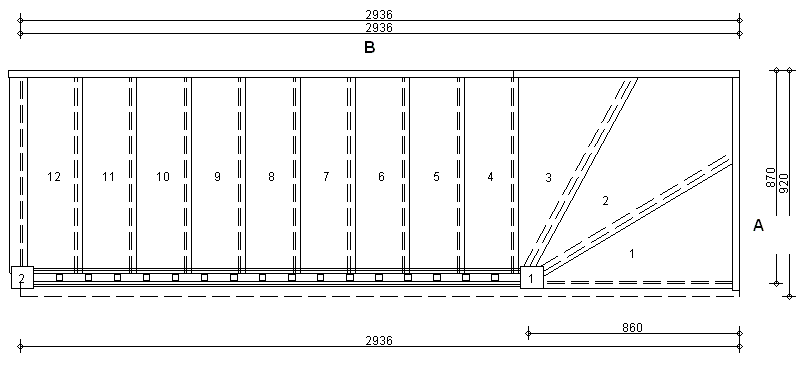

ESW39N Layout Plan

Left Hand Winder staircase layout plan dimensions fix screw design

Dimensions shown are the floor plan dimensions in mm.

The Floor Height this staircase is built to is a standard 2600mm floor height.

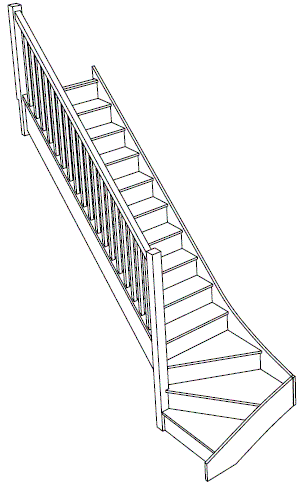

3D View of the Staircase

Left hand bottom winder stairs 3d view fix size standard offer

Material Specification on these standard staircases is as follows.

String Material - 32mm Engineered Pine
Tread Material - 22mm MDF
Riser Material - 12mm MDF
Newel Post Material - 90mm Pine
Handrail Material - Pine
Baserai Materiall - Pine
Baluster Material - Pine

We offer the Following Balustrading Options

Option 1 Option 2 Option 3 Option 4
No Balustrade just a stub newel post to the winder corner for construction purposes. Pine Handrail components, Newel Post sections 90mm Square , Balusters 32mm square section. No Caps Provided. Pine Handrail components, Newel Posts 90mm stop chamfered design, Balusters 32mm stop chamfered design. No Newel caps provided. Pine Handrail components, Newel Post 90mm Turned design with Ball newel caps, Spindles 32mm Georgian Turned design.

stair railing options for the fix screw fix size winder staircase offer

This selection of standard sizes winder staircases are available to order direct from us on 01952 608853.

With these being offered at standard fixed sizes we can offer these at exceptionally low prices phone us for the best price on the day and I a m sure you won’t be disappointed.

Now available to order online - ESW39N Standard Winder Staircase offer prices.

Standard winder Staircase Menu

Left hand bottom winder staircase Right hand bottom winder staircase fix Left hand top winder staircase offer screw Right Hand top winder staircase offer fix size
ESW39N Left Hand
Bottom Winder Staircase
ESW39N Right Hand
Bottom Winder Staircase
ES9W3N Left hand
Top Winder Staircase
ES9W3N Right hand
Top Winder Staircase
Left Hand double winder staircase fix standard size Right handr double screw winder staircase fix size offer Left Hand Winder Staircase with winders top and bottom screw design fix layout Right hand double winder staircase with a fix size screw layout
ES3W3W33N
Left Hand
Double winder staircase
ES3W3W33N
Right Hand
Double winder staircase
E3W36W3N
Left Hand
Double winder staircase
ESW36W3N
Right Hand
Double winder staircase
