X-Vision Staircases - Straight Layout

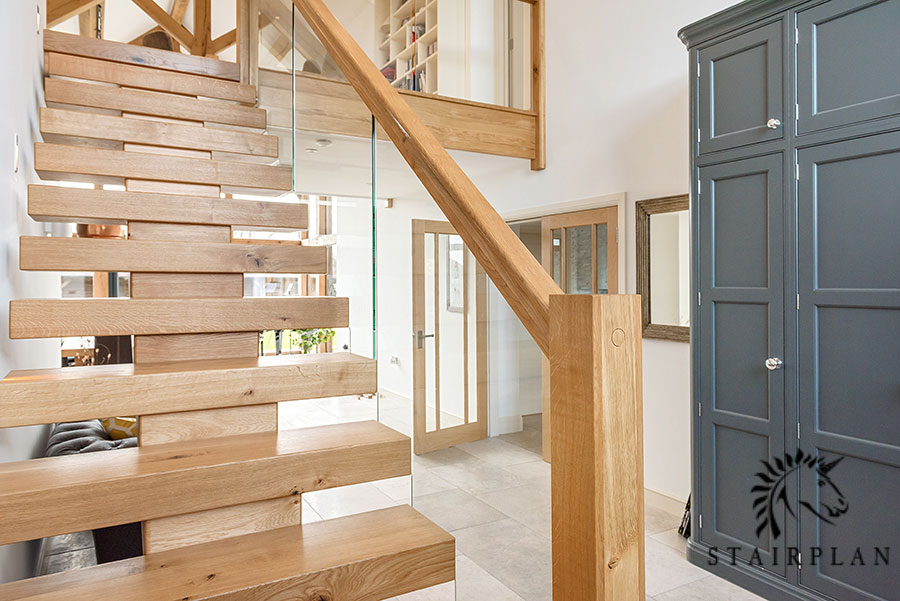

straight oak and glass x vision staircase

The X-Vision staircase is one or our Premium Oak Open Riser Staircases.Constructed in the UK by Stairplan with a central spine construction and chunky 110mm thick stair treads .we have a number of options when choosing a X-Vision staircase, we can manufacture the stair any stair layout, above you can see a standard straight stair layout with a right hand handrail, the bullnose tread shown here is our standard entry step detail on the X-Vision Staircase, other options are available.

Email us your stair details for a quotation, why not pay a visit to our staircase showroom in Telford, call us for a appointment.

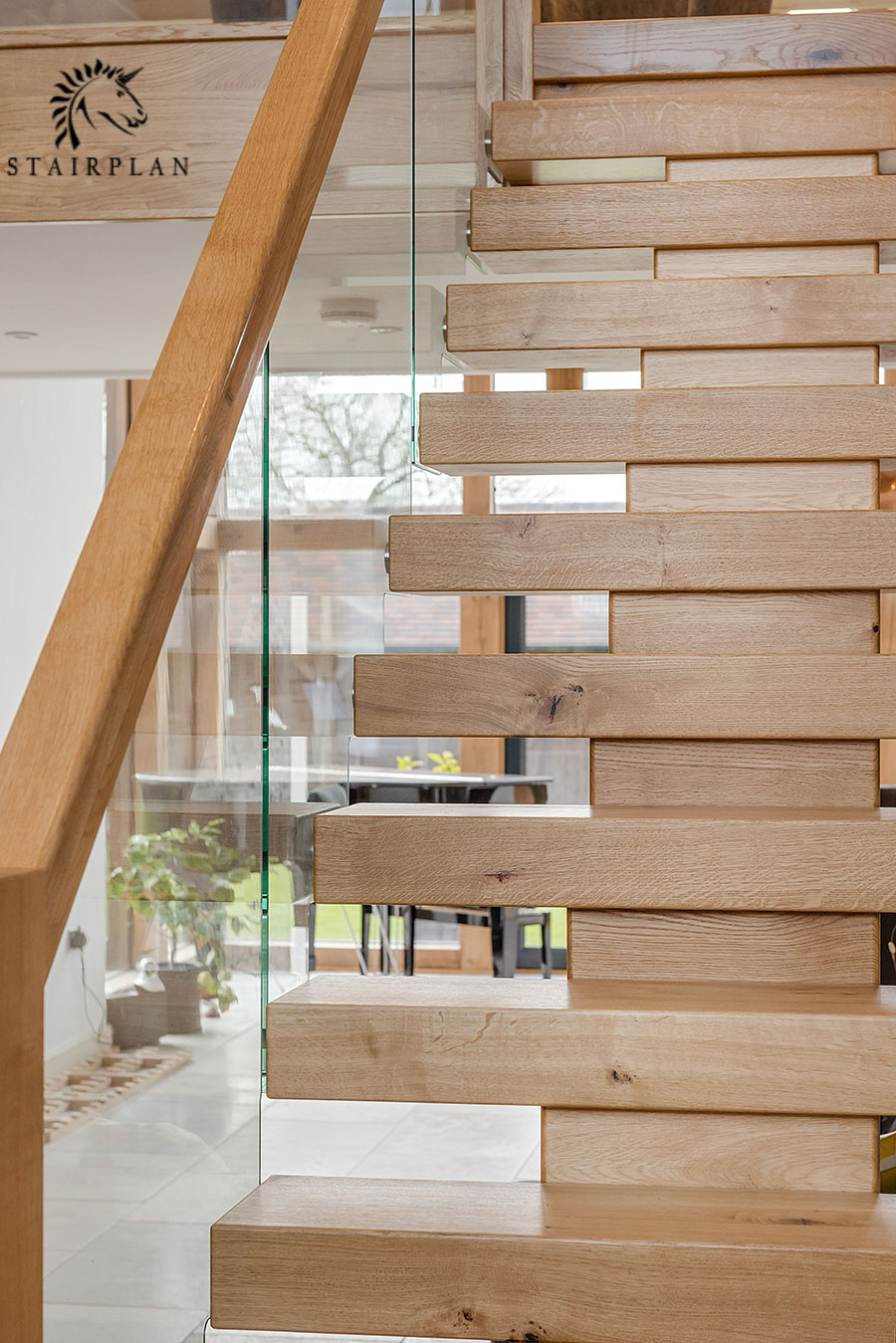

character oak x-vision staircase treads

This X-Vision staircase has been constructed with the Character oak Option, we offer Character oak or Select Oak, with character oak we purposfully leave defects like knots in the wood to enhance the character of the staircase.. Phone us on 01952 608853 for a quotation email us

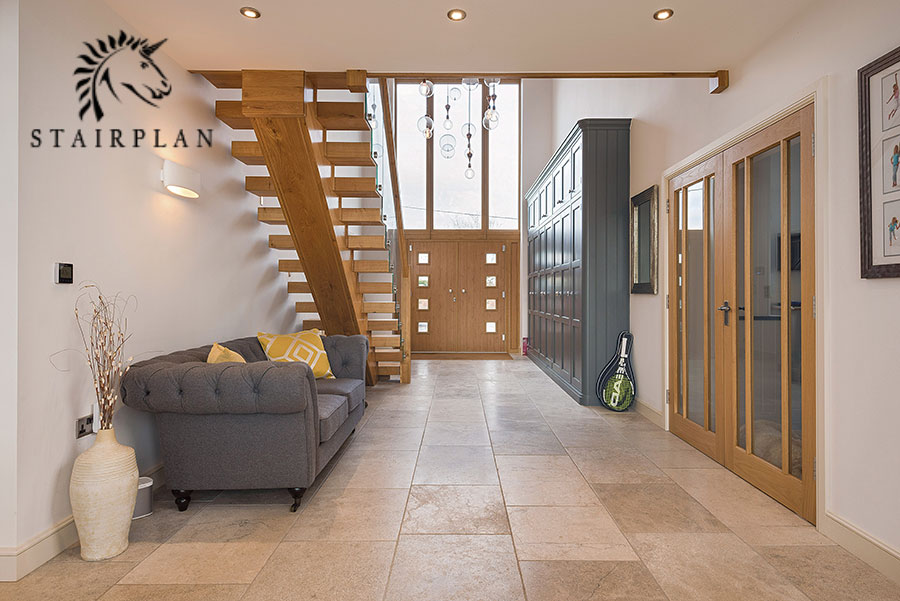

x-vision staircase side view with spine

In this side view you can see the central support spine the staircase is constructed around and you can olso see the optional stepped glass detail on the balustrade. The Glass on this staircase is grooved / embedded in the handrail and we have XV-BRAC Glass buttons fixing the glass to the treads.

Guide Price for This Staircase £ Call for our latest offers - even better visit our showroom

The Newel post dimensions on the X-Vision range of luxury staircases is 120mm square.

X0Vision straight stiarcase

Stairplan use European Oak on the X-Vision staircase. The EdgeLam construction and selection of the parts is carried out at Stairplan in the UK. The Layout on this staircase is left hand Straight flight (the handrail is on the left going up.

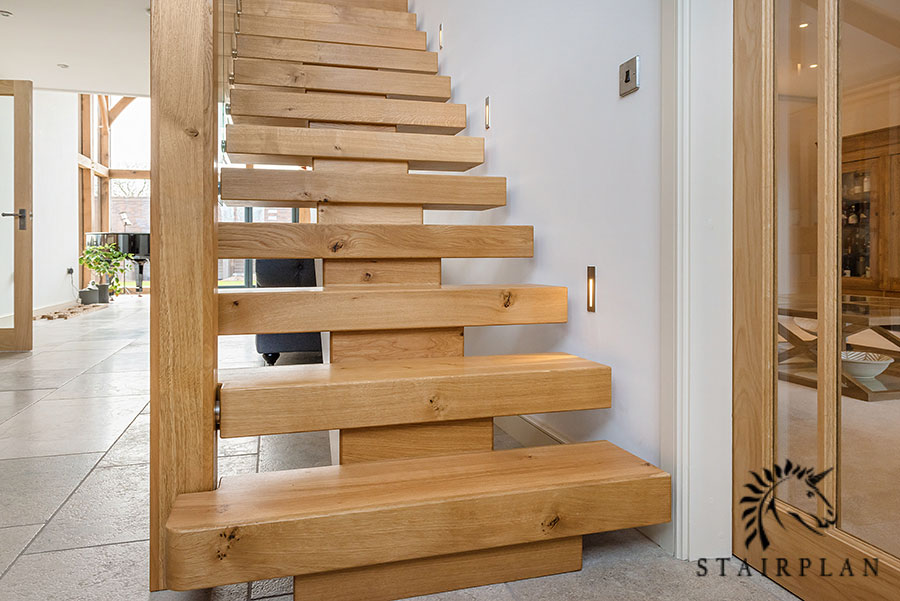

X-Vision 110mm oak stair treads

The X-Vision staircase has a central timber spine construction, seen here in European Character Oak, At the top of the staircase you can see the optional Oak Well Lining. The Tread Thickness is 110mm.

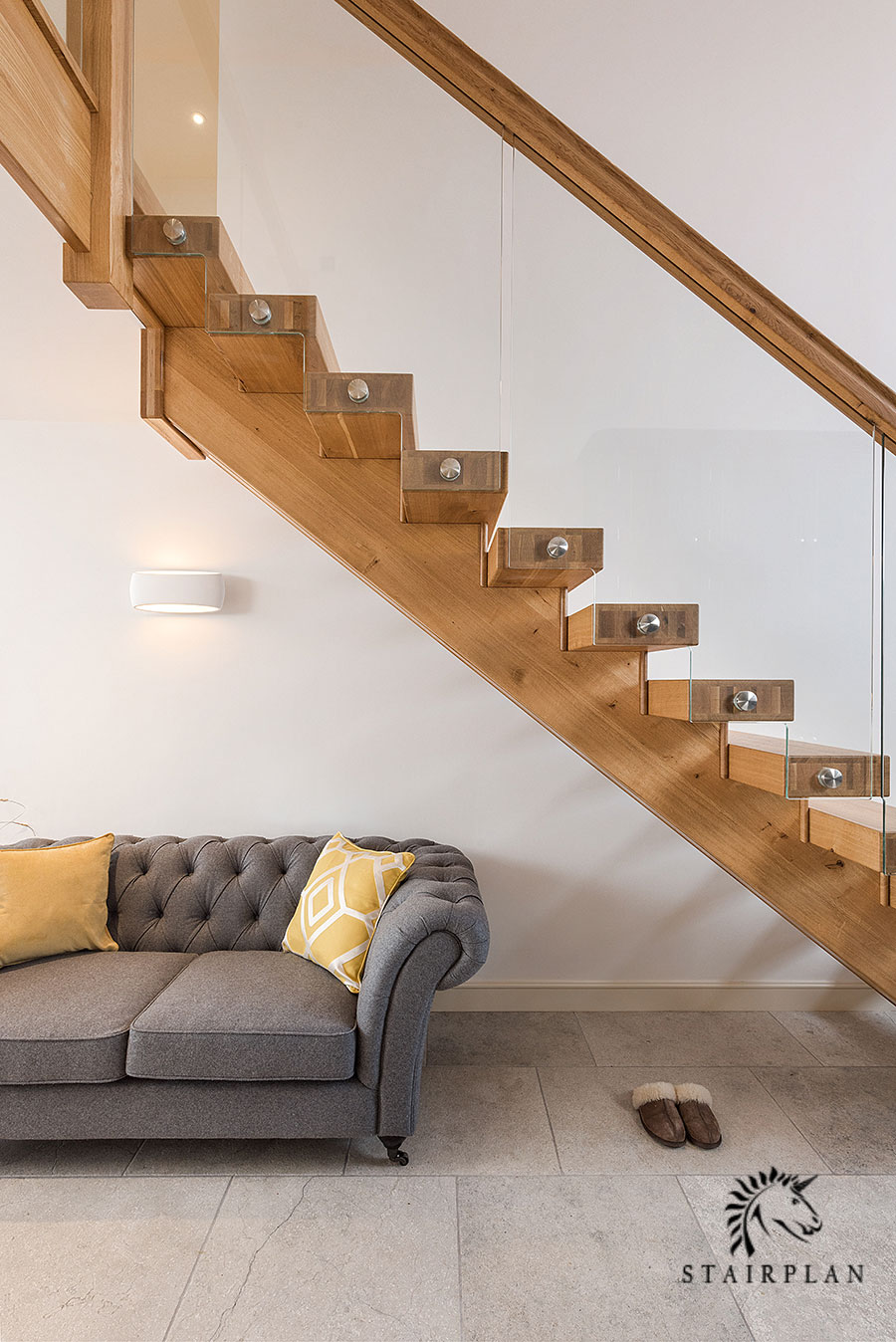

oak x-vision staircase spine detail

From this view you can see the underside of the X-Vision staircases Oak Spine detail.

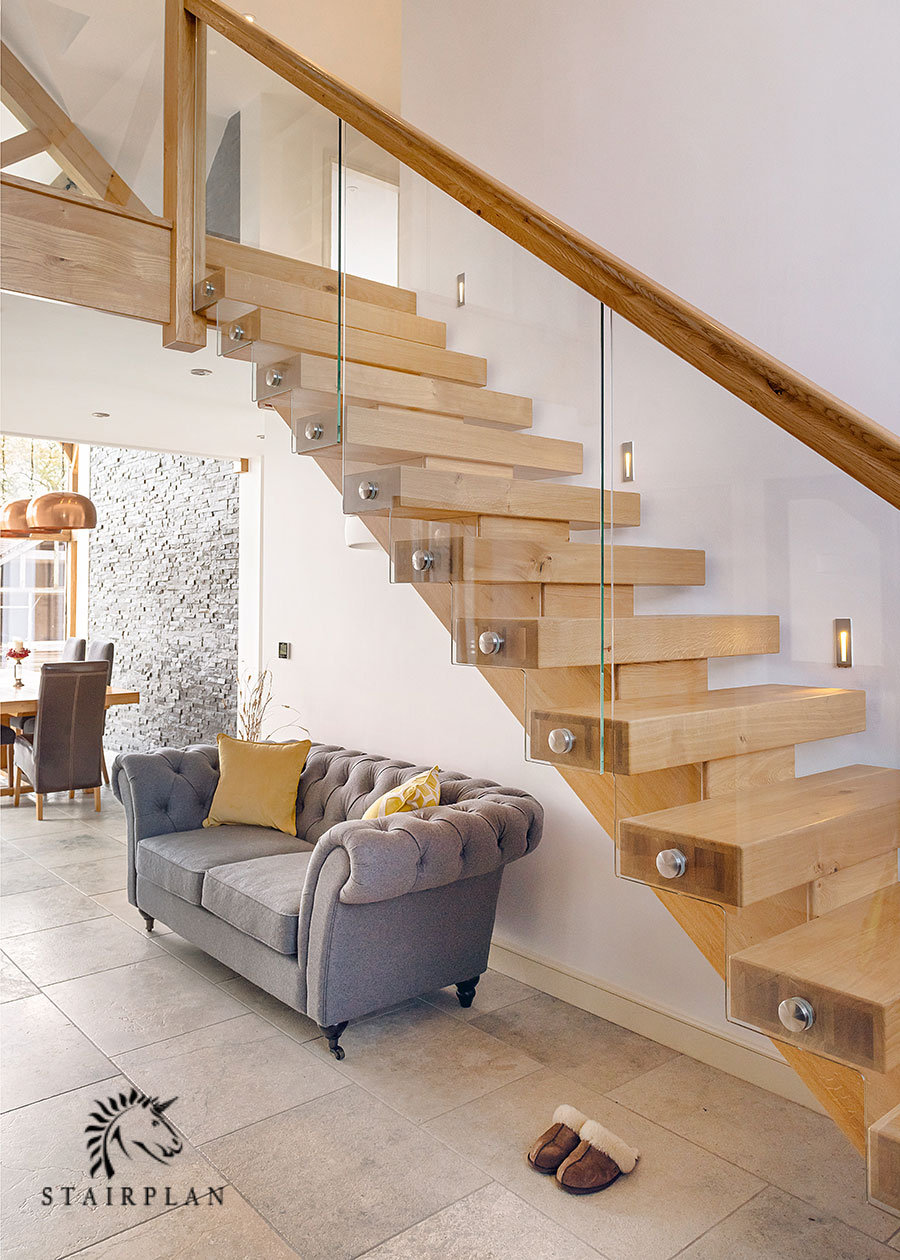

x-vision straight oak staircase left hand

Luxury Oak Staircases like the X-Vision have far more presence than standard oak staircases, wihn no veneers and the chunky 120mm newel posts, 110mm tread thickness and matching 80 x 80mm handrail the X-Vision staircases is far from the spec of a conventional staircase.

oak x-vision staircase treads

Charakter oak was selected on this staircase so the staircase would blend better with the rustic oak beams which are visible in the background on this image.

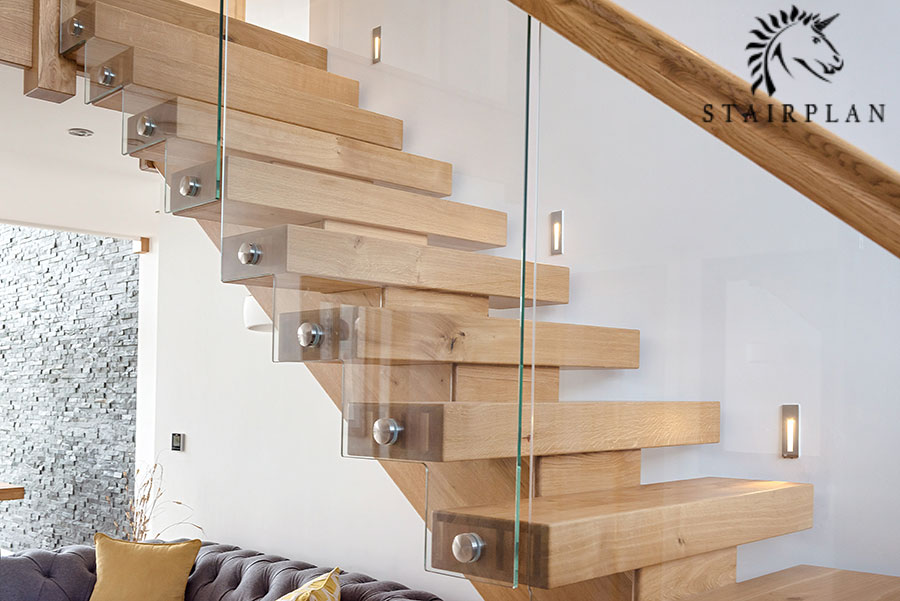

The optional stepped glass detail with the standard detail where the glass is fixed to the side of the stair tread with the curcular XV-BRAC glass fixing bracket.

stepped glass detail on x-vision staircases

The Handrail Section is XV-HR 80 x 80mm in section.

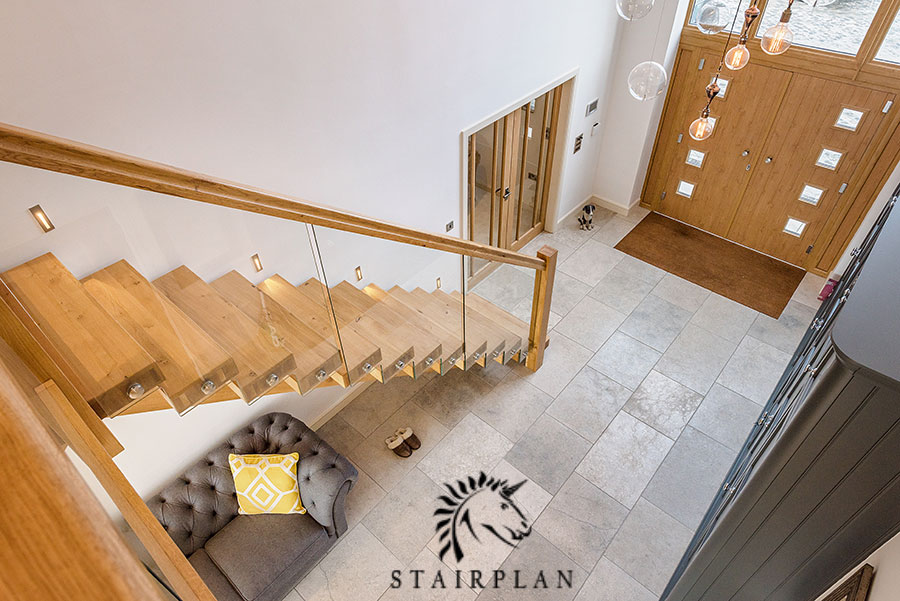

oak x vision straight staircase

Here you can see the treads sit away from the wall on the X-Vision Staircase.

So if you are looking for a Luxury staircase in Oak with Glass contact Stairplan Email Sales@stairplan.com and request a quoation on the X-Vision Staircase in Oak.

Back to the Main Oak X-Vision Stair Page

Black Walnut feature staircase

More on this Black Walnut X-Vision Staircase - Walnut X-Vision "T" Staircase

oak x-vision central feature staircases

Oak X-Vision Central Feature Staircases

Oak X-Vision staircase straight with handrails to both sides

straight x-vison staircase with handrails both left and right sides

See the X-Vision staircase in our showroom - Phone 01952 608853 for a appointment.
