Handrail Configurations Page 8

Daigram drawings to assist in knowing the parts required in a stair renovation project.

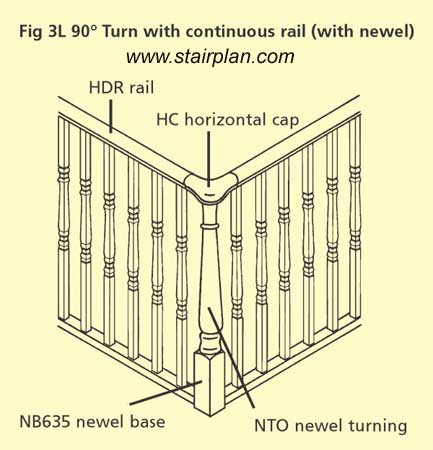

Continuous handrail on a landing

Here is a corner landing detail with a post and the continuous handrail system. The HC horizontal cap is connected to the straight handrails with Handrail Bolts.

Classic Handrail

Fluted newels

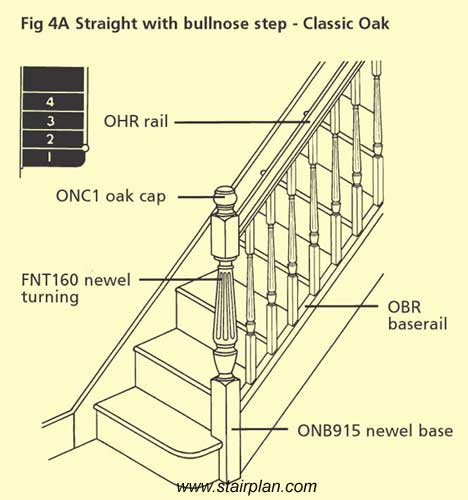

Here you can see the Classic Oak handrail system at the entry of a staircase, the bottom step detail shown is a Bullnose step, a Bullnose step is recommended at the entry of a staircase for structural and asthetic reasons.

Classic oak Fluted

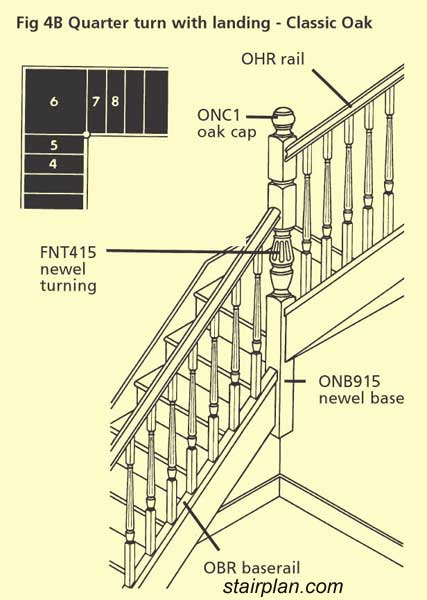

Here you have a quarter landing turn with the conventional NT415 newel turning and Post to Post handrail detail.
For handrail fixings we suggest the Stelten handrail fixings,

The Classic Oak handrail profile is a elegant and detailed handrail profile you can see this and the other profiles we offer on the Oak Handrails page

Classic oak stair parts

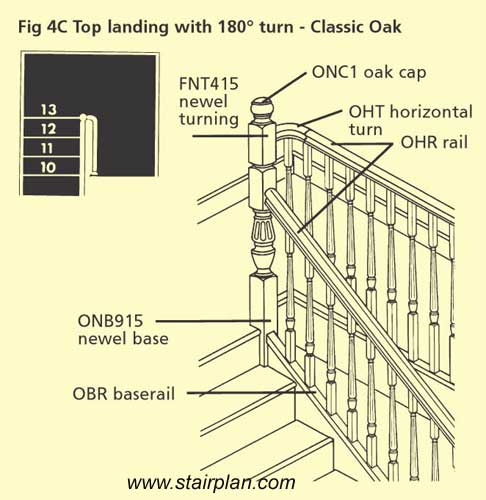

If you require the landing balustrade to be 1100mm high as in light commercail handrail installations then you would use a NT415 double stock newel post at the top of the staircase as shown above.

The Classic Oak handrail system is tested to 0.74kn for use in non domestic handrail installations.
